You probably know tires are made of rubber — but how much more do you know? Here’s a run-through of some important tire-related terminology:
1) Aspect ratio
This technical-sounding term refers to the relationship between the width of a tire and the height of the tire’s sidewall. High-performance “low profile” tires have “low aspect ratios” — meaning their sidewalls are short relative to their width. This provides extra stiffness and thus better high-speed handling and grip — but also tends to result in a firmer (and sometimes, harsh) ride. “Taller” tires tend to provide a smoother ride and better traction in snow.
2) Contact Patch
As your tires rotate, only a portion of the total tread is actually in contact with the ground at any given moment. This is known as the contact patch. Think of it as your tire’s “footprint.” Sport/performance-type tires are characterized by their wider footprint — more tread is in contact with the ground — which provides extra grip, especially during hard acceleration on dry pavement and during high-speed cornering.
3) Treadwear indicators
These are narrow bands built into the tread during manufacturing that begin to show when only 1/16 of the tire’s tread remains. Also called wear bars, treadwear indicators are there to provide an obvious visual warning that it’s time to shop for new tires.
4) Speed ratings
An alpha-numeric symbol you’ll find on your tire’s sidewall that tells you the maximum sustained speed the tire is capable of safely handling. An H-rated tire, for example, is built to be safe for continuous operation at speeds up to 130 mph. Most current model year family-type cars have S (112 mph) or T (118 mph) speed ratings. High performance cars often have tires with a V (149 mph) or ZR (in excess of 149 mph) speed rating. A few ultra-performance cars have W (168 mph) and even Y (186 mph) speed-rated tires.
5) Maximum cold inflation load limit
This refers to the maximum load that can be carried in a given vehicle with a given type of tires — and the maximum air pressure needed to support that load. In your vehicle’s owner’s manual, you should be able to find the recommended cold inflation load limit. It’s important not to exceed the load limit (or over or under-inflate the tires) as this can lead to stability/handling problems and even tire failure. Always check tire pressure “cold.” Driving creates friction which creates heat; as the tires warm up, the air inside expands, increasing the pressure. Measuring air pressure after driving can give a false reading; you may actually be driving around on under-inflated tires.
6) Load index
This number corresponds to the load carrying capacity of the tire. The higher the number, the higher the load it can safely handle. As an example, a tire with a load index of 89 can safely handle 1,279 pounds — while a tire with a load rating of 100 can safely handle as much as 1,764 pounds. It’s important to stick with tires that have at least the same load rating as the tires that came originally with the vehicle — especially if it’s a truck used to haul heavy loads or pull a trailer. It’s ok to go with a tire that has a higher load rating than the original tires; just be careful to avoid tires with a lower load rating than specified for your vehicle, even if they are less expensive. Saving a few bucks on tires is not worth risking an accident caused by tire failure.
7) Radial vs. bias-ply tire
Bias-ply tires have their underlying plies laid at alternate angles less than 90 degrees to the centerline of the tread; radials have their plies laid at 90 degrees to the centerline of the tread. That’s the technical difference. The reason radial tires are dominant today is that they help improve fuel efficiency and handling; they also tend to dissipate heat better than bias-ply tires. No modern passenger cars come with bias-ply tires these days and their use is generally not recommended. (Exceptions might include older/antique vehicles that originally came equipped with bias-ply tires. Some RVs also used bias-ply tires, etc.) It is very important never to mix radial and bias-ply tires; dangerously erratic handling may result.
8) LT and MS tires
These designations indicate “Light Truck” and “Mud/Snow” — and are commonly found on tires fitted to SUVs and pick-ups. LT-rated tires are more general purpose, built primarily for on-road use — while MS-rated tires typically have more aggressive “knobby” tread patterns designed for better off-road traction.
9) Temporary Use Only
Many modern cars come with so-called “space-saver” tires which are smaller and lighter than a standard or full-size spare tire. They are designed to leave more room in the trunk and be easier for the average person to handle when a roadside tire change becomes necessary. However, they are not designed to be used for extended (or high-speed) driving. Your car will probably not handle (or stop) as well while the Space Saver tire is on – and you should keep your speed under 55 mph and avoid driving on the tire beyond what’s absolutely necessary to find a tire repair shop where you can have your damaged tire repaired or replaced.
10) Treadwear, Traction and Temperature ratings
Each tire has three separate ratings for Treadwear, Traction and Temperature.
Traction ratings run from AA to A to B and C — with C being the lowest on the scale. The ratings represent the tire’s ability to stop on wet pavement under controlled testing conducted by the government. C-rated tires are marginal and should be avoided. Never buy a tire with a Traction rating that isn’t at least equal to the minimum rating specified by the manufacturer of your vehicle.
Temperature ratings from A to B to C — with C being the minimum allowable for any passenger car tire. The ratings correspond to a given tire’s ability to dissipate heat under load; tires with lower ratings are more prone to heat-induced failure, especially if driven at high speeds (or when overloaded). As with Traction ratings, never buy a tire with a Temperature rating that’s less than specified for your vehicle.
Treadwear ratings differ from Traction and Temperature ratings in that they aren’t a measure of a tire’s built-in safety margin. Instead, these ratings — represented by a three digit number — give you an idea of the expected useful life of the tire according to government testing. A tire with a Treadwear rating of 150, for example, can be expected to last about 1.5 times as long as a tire with a Treadwear rating of 100. These are just guides, however. Your tires may last longer (or not) depending on such factors as how you drive, whether you maintain proper inflation pressure and rotate the tires per recommendations — and so on.
Comments?
• Ford user experience team uncovered important customer wants with cardboard prototype made in a few hours with scissors, a razor blade and a hot glue gun
• Mega Power Frunk design and engineering teams faced lofty challenges, including an asymmetrical frunk, drainable floor and waterfall hood design to meet customer expectations
DEARBORN, Mich.– A cardboard box found a new lease on life after being recruited by Ford to help develop a new feature known as the Mega Power Frunk. The all-electric 2022 F-150 Lightning pickup’s new front trunk or, as it’s known in industry speak “frunk” is the largest in the truck industry – with 400 liters (14.1 cubic feet) of cargo space and maximum payload capacity of 400 pound
“The F-150 Lightning pickup’s Mega Power Frunk is one of those features that reshape what vehicles can provide for customers. It’s sheer size, ample power supply, drainable floor and open and close system that opens with the touch of a button make it frunking awesome!” said Linda Zhang, F-150 Lightning Chief Program Engineer.
What many don’t know is this spacious and dynamic space began life as a simple cardboard box with a cutout front door and a liftable hood.
Understanding the Customer’s Needs
It began back in February 2018 with Team Edison – Ford’s dedicated battery electric vehicles incubator that incorporates close collaboration between different teams to find solutions to customer needs. A small group of young user experience designers set out to California, where they sat down with actual Ford truck and fleet customers to talk about how they might use such a feature. The prototype, made of cardboard for simplicity and cost and built in about a day using scissors and hot glue, was brought to every meeting to help customers visualize the opportunity.
In the studio, Greg Ardisana, design strategy director, passenger vehicles, and other Team Edison research members worked as consultants alongside engineering and design whenever they had customer use questions, which led to a close-knit collaboration between groups.
Once the frunk is open, customers can fill it with ice and drinks to “frunkgate” it, since it’s water-resistant, cleanable and has a drainable floor.
Steve McInally, frunk feature supervisor, said the team explored every detail as an opportunity. “We put the customer first in every decision we made and were able to deliver on a Mega Power Frunk,” he said. “And it’s going to blow people’s minds.” The 2022 F-150 Lightning pickup will be available starting Spring 2022.
# # #
1 - Cargo and load capacity limited by weight and distribution.
2 - FordPass App, compatible with select smartphone platforms, is available via a download. Message and data rates may apply.
About Ford Motor Company
Ford Motor Company (NYSE: F) is a global company based in Dearborn, Michigan, that is committed to helping build a better world, where every person is free to move and pursue their dreams. The company’s Ford+ plan for growth and value creation combines existing strengths, new capabilities and always-on relationships with customers to enrich experiences for and deepen the loyalty of those customers. Ford designs, manufactures, markets and services a full line of connected, increasingly electrified passenger and commercial vehicles: Ford trucks, utility vehicles, vans and cars, and Lincoln luxury vehicles. The company is pursuing leadership positions in electrification, connected vehicle services and mobility solutions, including self-driving technology, and provides financial services through Ford Motor Credit Company. Ford employs about 184,000 people worldwide. More information about the company, its products and Ford Motor Credit Company is available at corporate.ford.com.
WHAT IS A DIESEL ROTARY SCREW AIR COMPRESSOR?
A diesel rotary screw air compressor is an air compressor fueled by diesel that uses rotors to compress air. Diesel air compressors allow operators to generate compressed air on demand for powering tools and equipment.
Learn more at: https://www.vmacair.com/product/diesel-driven-air-compressors/
What started as a trade show has evolved to meet the changing needs of the industry. The event has expanded beyond the walls of Indiana Convention Center to encompass hotels, restaurants, sports arenas, concert venues and the streets that connect them. From Monday to Friday, its energy, scale and intensity encompass the city — making Work Truck Week a one-of-a-kind industry experience. View press release.
“We have Super Duty customers who saw the Tremor winch calling to say they want that same choice,” said Ron Meredith, Ford truck vehicle personalization planning manager. “So we’ve expanded its availability to every new Super Duty pickup and made sure it meets the needs of all of our hardworking Super Duty customers.”

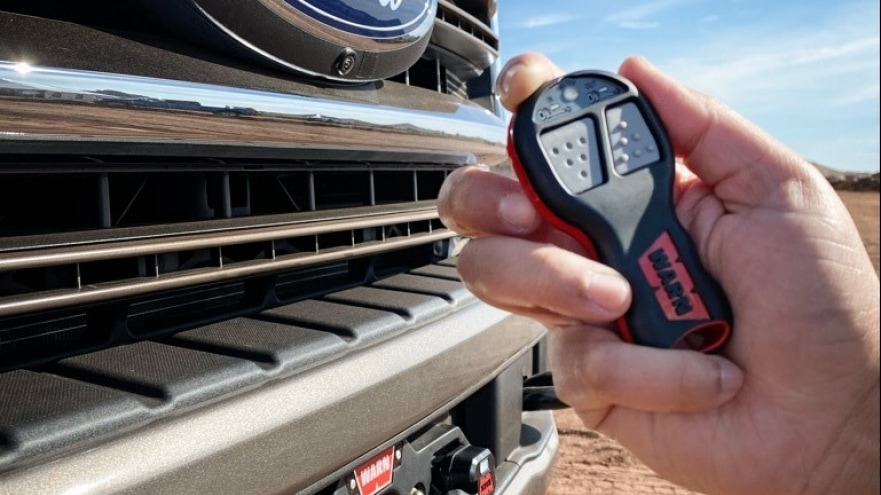

Available as a factory-orderable option or dealer-installed accessory, the winch can be added to optional 7.3-liter gas V8 or 6.7-liter Power Stroke® V8 diesel-powered 2020 or newer 4x4-equipped F-250 and F-350* Super Duty pickups with available dual batteries and dual 397-amp alternators.
